LED-38
Typical Specifications
| Peak wavelength |
3.85 ± 0.05 micron |
| Typical output Power at 1000mA |
100 microWatt |
| FWHM |
0.8 micron |
| Operating conditions |
10°C to 45°C |
| Test conditions |
pulsed mode, 5 microsecond at 500Hz, 22°C |
| Package |
TO-18 |

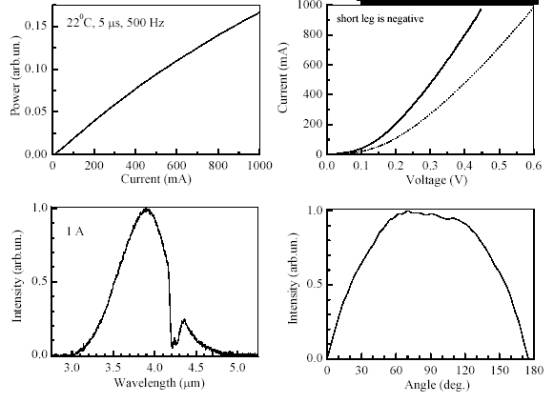

| a) |
LED's output intensity Vs drive current (pulsed
mode, 5ms at 500Hz). |
| b) |
I-V Characteristics (forward bias) |
| c) |
Output Intensity Vs Wavelength |
| d) |
Output Intensity Vs Angle (deg.) F.O.V. |
